(Endress+Hauser Release) — Worldwide, over 90 million barrels of crude oil, natural gas and refined hydrocarbons are produced, transported, stored, and sold to end customers every day. Any measuring inaccuracy results in enormous shortfalls for suppliers or buyers. This is not the case with Promass Q. Thanks to its revolutionary 4-tube technology and an extended measuring range for pipelines up to DN 250 (10"), operators of loading stations are just one example of those who enjoy its many benefits.

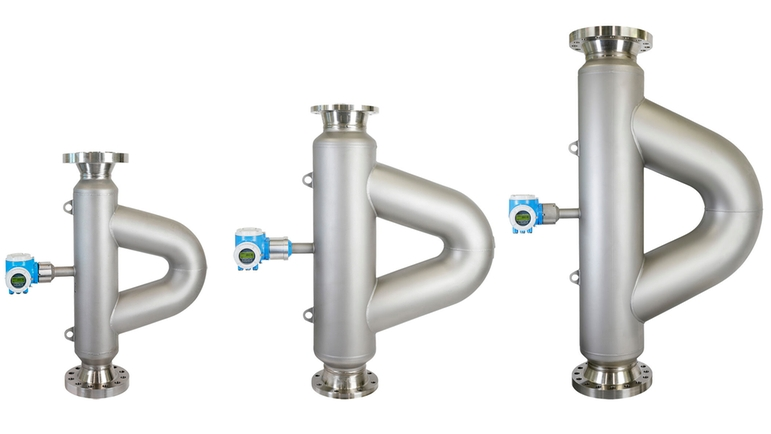

Promass Q, the Coriolis flowmeter from Endress+Hauser, is now also available for larger pipe sizes with maximum flow rates between 850 and 2400 t/h (6700 and 18 900 bph). Furthermore, the implementation of the revolutionary 4-tube technology opens numerous promising applications in the oil and gas industry – for example, as a highly accurate duty meter for custody transfer and fiscal metering, or as a precision reference device (master meter) for on-site verification measurements.
The flowmeter’s benefits include:
- Best measuring accuracy (±0.05% o.r.) and exceptional repeatability (±0.025%) over the entire measuring range: tested and confirmed on various external, accredited oil and gas calibration facilities
- Excellent measuring performance for liquids with microbubbles thanks to patented MFT (Multi-Frequency Technology)
- Outstanding density measuring accuracy (tested by H&D Fitzgerald/UK): ±0.2 kg/m³ (±0.0002 g/cm³)
- Best turndown and zero point stability in the industry
- Can be used for process temperatures up to 205 °C (401 °F) or in the low temperature range down to –196 °C (–321 °F)
4-tube technology
Compared to Coriolis flowmeters with two measuring tubes, four tubes allow up to 25% higher flow rates. This speeds up all transactions in the oil and gas business and thus saves money by reducing, for example, standstill times for loading and unloading oil tankers, resulting in lower port charges. Another advantage is that unwanted pressure losses are much less significant with four measuring tubes.
Promass Q sensors, which are available in stainless steel and in IP66/67, ensure reliable and low-maintenance long-term operation. Therefore, the harsh environmental conditions in the offshore area with humid atmosphere and salty splash water do not pose a problem for smooth measurement operation. The compact design is unparalleled relative to the flow capacity that can be reached (max. 2400 t/h – 18 900 bph). It allows for installation even in the most confined spaces.
