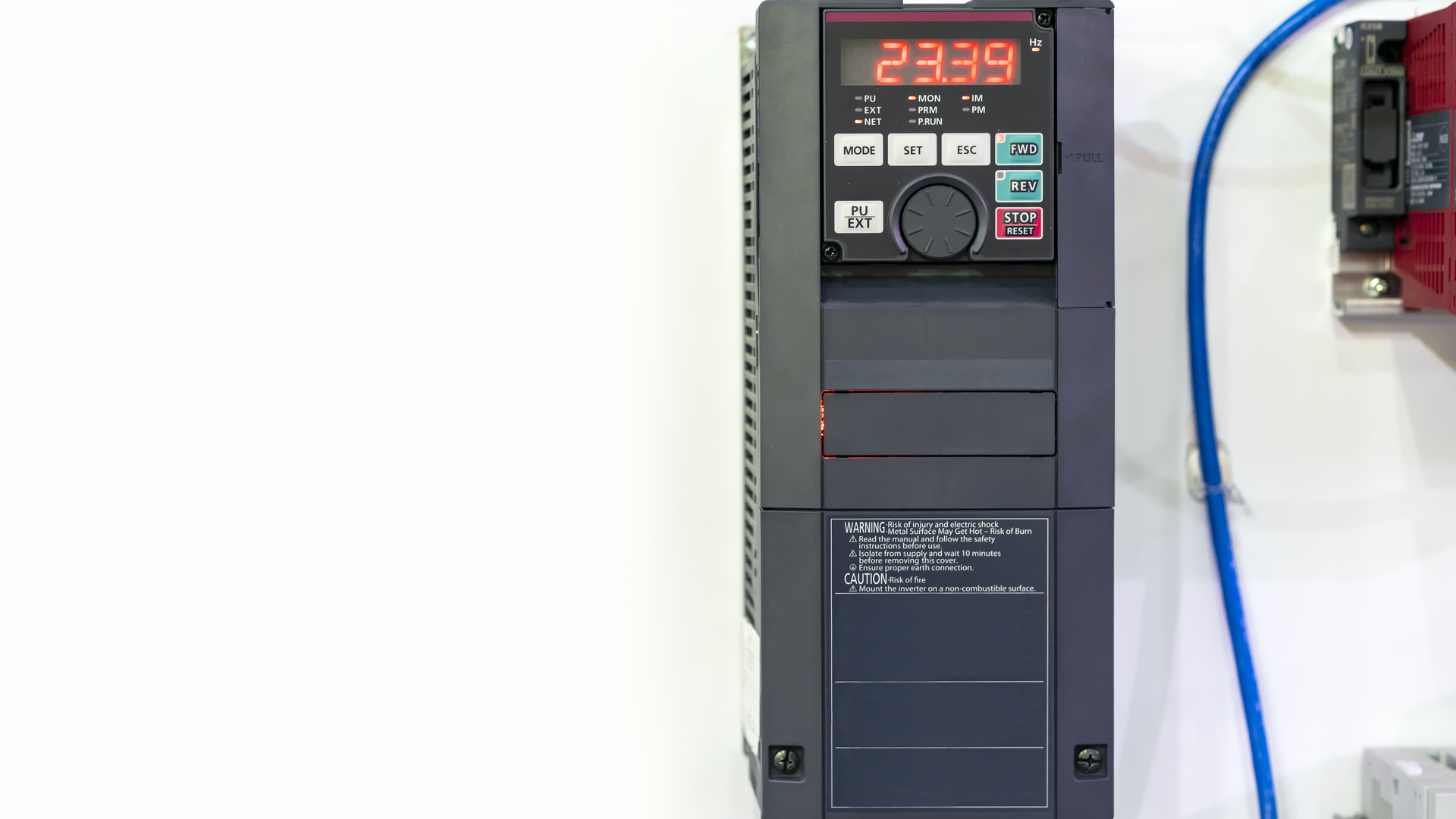

It is desired to control the level in a process tank where the flow out of the tank is measured and manipulated by varying the speed of its discharge pump using a variable speed motor drive. Which of the following control strategies could be used?
A. Feedback
B. Feedforward
C. Cascade
D. Feedforward and cascade
A feedback controller could be applied where the level is the process variable and the speed of the pump is the manipulated variable. Answer A is applicable.
Feedforward control is used to modify the controller output in response to a measured disturbance. There is no measured disturbance so Answers B and D are not applicable.
Cascade control can be used where a level controller (master) provides the set point for an outflow controller (slave). Using a master controller for the slower level process and a slave controller for the faster flow loop generally results in superior control because the user can tune the relatively slow-acting level controller and the relatively fast-acting flow controller independently. Answer C is applicable.
Additional complicating factors
A measurement of the flow coming into the process tank allows the possibility of using feedforward control to adjust the outflow to improve control of the tank level.
