Ultrasonic Flowmeters: So Many Paths to Choose From

Dec. 28, 2011

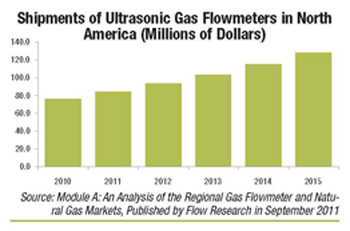

Transit-time ultrasonic flowmeters rely on ultrasonic transducers to send a signal or “beam” at an angle from one side of a pipe to the other. Often this signal is reflected

Transit-time ultrasonic flowmeters rely on ultrasonic transducers to send a signal or “beam” at an angle from one side of a pipe to the other. Often this signal is reflected back to the sending side of the pipe. The flowmeter calculates flowrate by comparing the difference between the “transit time” of the signal when it travels with the flowstream and when it travels against the flowstream.

Transit time ultrasonic flowmeters are distinguished according to the number of “paths” they have. A path is simply the path or track of the ultrasonic pulse as it travels across the pipe and back again. Many ultrasonic flowmeters are single- or dual-path, meaning they send either one or two signals across a pipe and back. Typically there are two transducers for each path; one is a sender and one is a receiver.

In the past 10 years, there has been a lot of research and development work on multipath ultrasonic meters. These ultrasonic meters have three or more paths. The benefit of having multiple paths is that flow is measured at more points in the flowstream. This enhances the accuracy of the measurement. In 1998, the American Gas Association (AGA) approved the use of ultrasonic flowmeters for custody transfer of natural gas. Since that time, suppliers have researched multipath meters and brought out many new products.

The main suppliers of ultrasonic flowmeters for custody transfer of natural gas include Emerson Daniel, Elster-Instromet, Sick, and FMC Technologies. More recently, KROHNE has also released the Altosonic V12, a 12-chord meter for custody transfer of gas applications. Since that time, Cameron, which has traditionally had petroleum liquid applications, has released the LEFM 380Ci, an eight-path ultrasonic meter for natural gas applications.

Most ultrasonic multipath meters for custody transfer of natural gas have four, five, or six paths. However, in May 2011, Elster Instromet announced a new ultrasonic gas meter that has six paths and sixteen chords. The additional number of chords enables the flowmeter to take into account flow profile and turbulence, and provides additional diagnostic capabilities.

Ultrasonic multipath flowmeters are also used to measure the custody transfer of petroleum liquids. Two companies that are prominent for these applications are Caldon (now a division of Cameron) and Faure Herman (now a division of IDEX Corporation). Caldon used to have ultrasonic meters designed primarily for the nuclear industry. However, in recent years, the company has expanded its application range to include the oil and gas industry. Caldon has two-path, four-path, and eight path meters for liquid applications. The company was acquired by Cameron in January 2006. Caldon’s flowmeters are among the most expensive ultrasonic meters made.

Faure Herman, which is based in France, is well known for its helical blade turbine flowmeters. However, it also offers what it calls an 18-path ultrasonic flowmeter for custody transfer of liquids. In addition to custody transfer, Faure Herman’s ultrasonic flowmeter is designed for process applications. Faure Herman was acquired by IDEX Corporation in February 2007.

KROHNE is another company that has made its mark in custody transfer of liquids, with its ALTOSONIC V and ALTOSONIC III offerings.

About the Author

Jesse Yoder

Jesse Yoder, Ph.D., is president of Flow Research Inc. He has 30 years of experience as an analyst and writer in instrumentation. Yoder holds two U.S. patents on a dual-tube meter design and is the author of "The Tao of Measurement," published by ISA. He may be reached at [email protected]. Find more information on the latest study from Flow Research, "The World Market for Gas Flow Measurement, 4th Edition," at www.gasflows.com.
