Variable area flow meters

Sept. 21, 2023
Chemline Plastics’ new F Series features clear visual indicators and optional alarm signals.

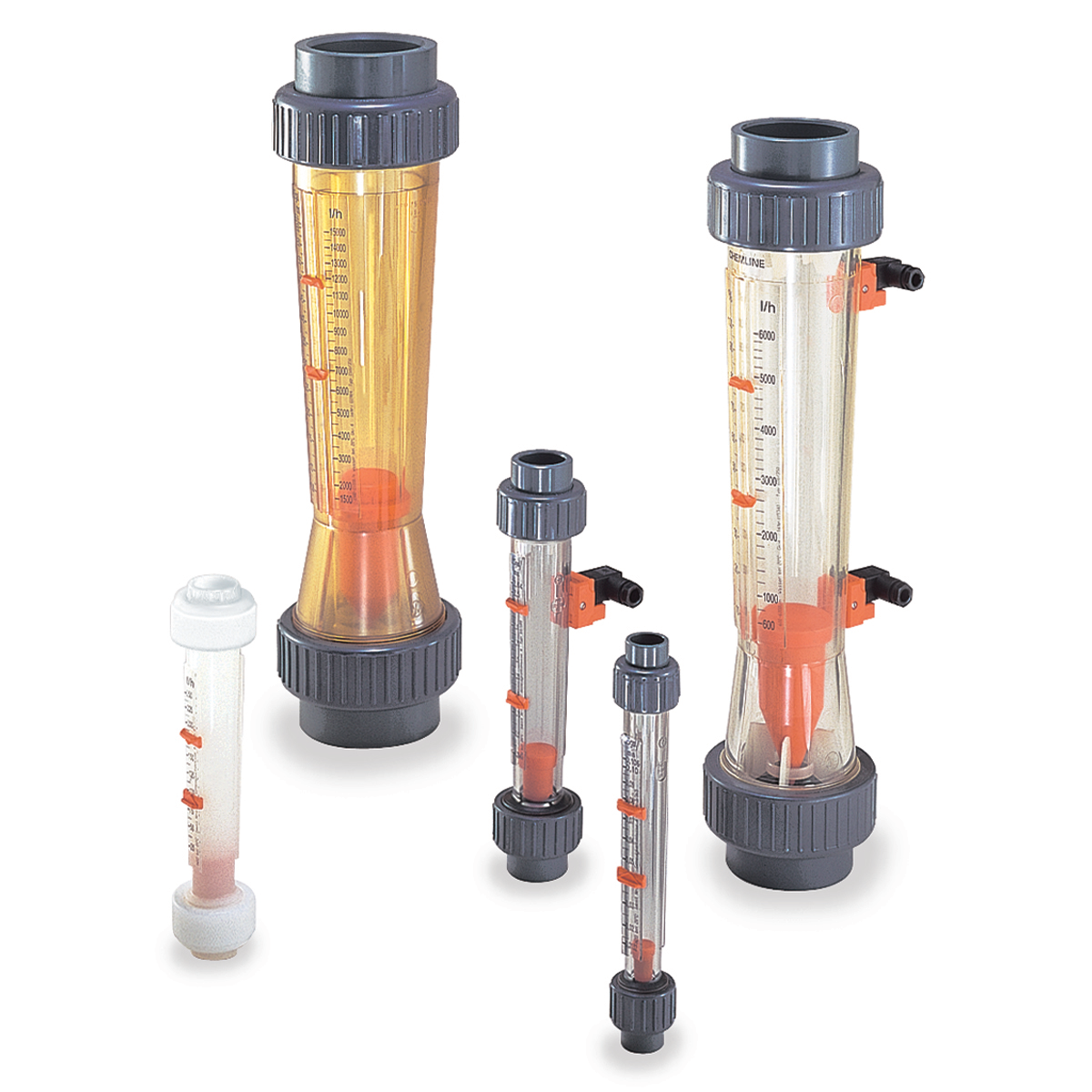

Chemline F Series Variable Area Flow Meters, ideal for plastic piping, provide a combination of accurate visual flow rate measurement and clear flow indication from a distance. Optional limit switches allow a low or high flow alarm signal. An optional flow transmitter provides a 4 to 20 mA signal output. The flow meters can be used with liquids or gases and must be installed vertically with an upward flow.

Product highlights include:

  • Sizes: FC Series Compact – 5-inch Single Scale, FS Series Full Size – 7-inch Dual Scale
  • Tube body material: PVC, Polyamide (PA), Polysulfone (PSU), PVDF
  • End connection material: PVC, CPVC, PP, PVDF
  • Ends: Socket, threaded, flanged butt or ChemFlareTM
  • O-Rings: EPDM or FPM (Viton)
  • Capacity: up to 220 USGPM (50,000 litres per hour)
